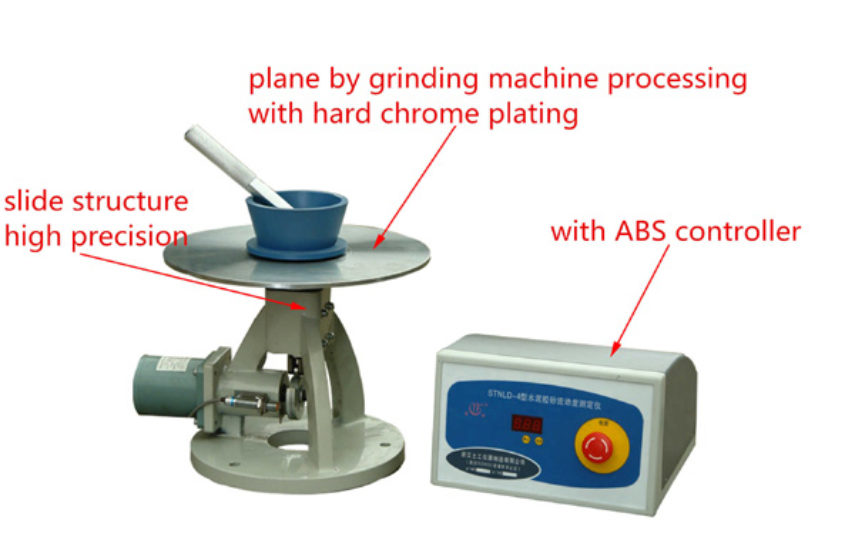

Application: the flow table is used for determining the flow of mortar. The cam system driven by a motor, the control panel with digital counter automatically stopes the apparauts at the end of the test cycle.
Technical Parameter:
1. Total Weight of Pulsatory Part: 4.35KgВ±0.15Kg
2. Drop height: 10mmВ±0.2mm
3. Diameter of round table: 300mmВ±1mm
4. Flow mould: 70mm and 100mm diameter X 60mm deep.
5. Tamper: 20mm diameter, 200mm long;
6. Drop times of every cycle: 25 times
7. Drop period: 25 seconds
8. Power 220V 50Hz
