Complies to ASTM/C666
Application: The machine determines the
resistance of concrete specimens to rapidly
repeated cycles of freezing and thawing in
the laboratory by method of Rapid Freezing
and Thawing in Water.
Technical parameters:
1. Accepted specimens are 16 pcs and 28pcs;
2. Specimen size: 100Г—100Г—400mm,
Specimen container size:120Г—120Г—500mm,
3. Freezing and thawing circle: around 2.5-4h
4. Time/specimen center temperature when
freezing completed: 1.5-2.5hour/-17В±2в„ѓ;
5. Time/specimen center temperature when
thawing completed: 1.0-1.5hour/3В±2в„ѓ;
6. Temperature difference between surface
and center of specimens is less than 28в„ѓ;
7. Standard cycles are 300 times while counter
can record upto 999999 times;
8. Freezing and thawing media: 120kg antifreeze
fluid(-45в„ѓ);
9. Imported high quality compressor: complet
shut-off type 7.5HP;
10. Max working power: 9.7kW;

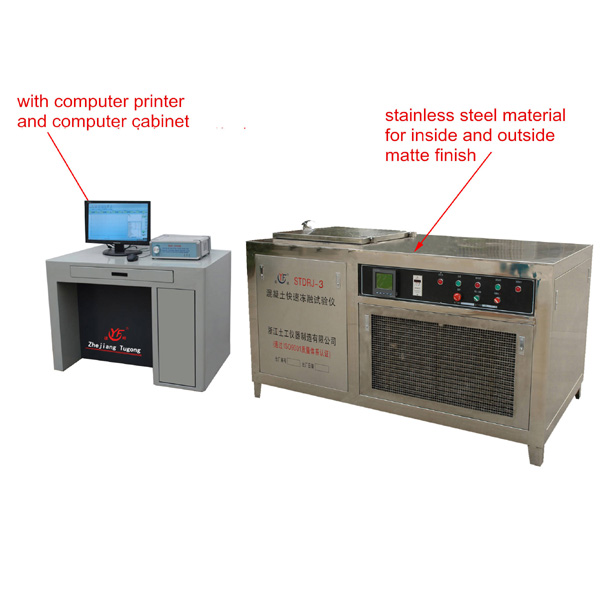

Features: Computer control; compact in frame;
stainless steel for both inner and outside of the
cabinet; easy installation and maintainance.
