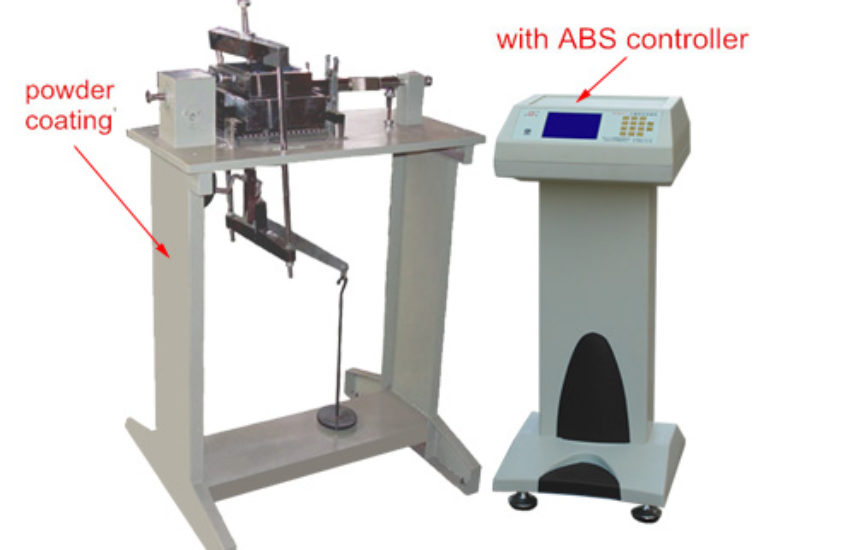

Application: The instrument measures friction
characteristic between soil and geosynthetic
materials interfaces
Specification:
1. Horizontal shearing performed by high precision
stepper motor
2. Measuring range: 0-10KN
3. Vertical loading: 100KPa,200KPa,300KPa,400KPa
4. Horizontal shearing rate: 0.02-3mm/min
5. Horizontal shearing displacement: 0-30mm
6. Voltage: AC220VВ±10%
