1. Rating pressure: 40kN
2. Limited pressure: 50kN
3. Max. Distance: 20mm
4. Limited distance: 25mm
5. Relative indication error: В±3%
6. Total weight of the equipment: 104kg, 57kg
(the flat jack 57KGS included)
7. Plane size of the up pressure plate: 400mmX240mm
8. Oil reserve: 2L
9. Diameter of the oil tank for the flat jack: 140mm

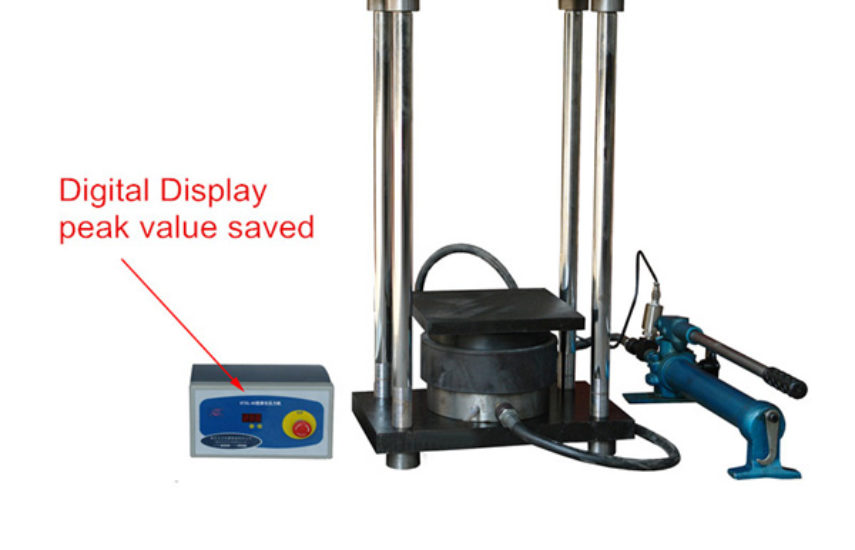

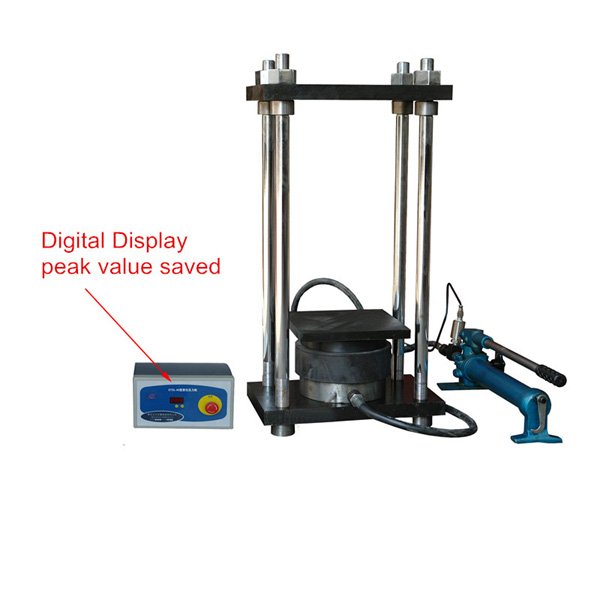

Structure: This equipment is consist of the flat jack,
4 columns, up pressure plate, down pressure plate, ball pad, hand pump compression rod, digital gauge and so on.
