Use:
    It is suitable for doing testing experiments such as the tensile, compression and shear testing for all kinds of metal materials and
nonmetal materials such as plastic, concrete, cement and so on.

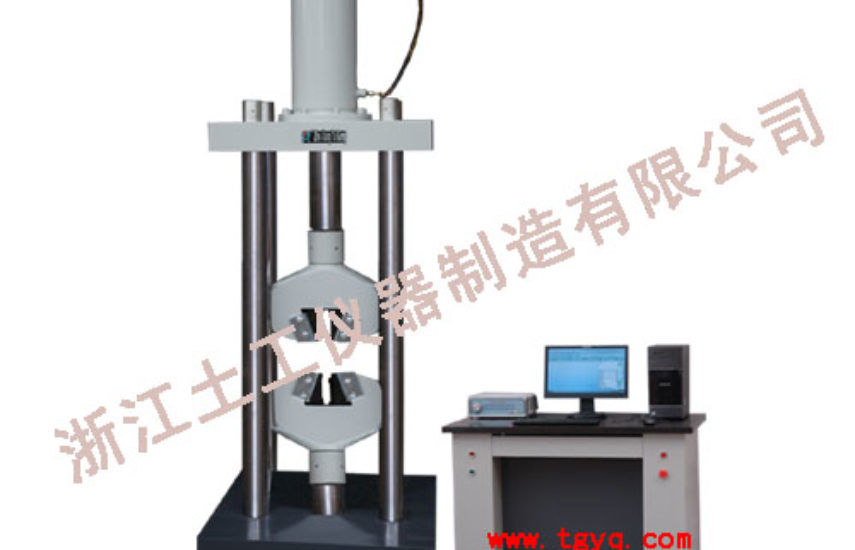

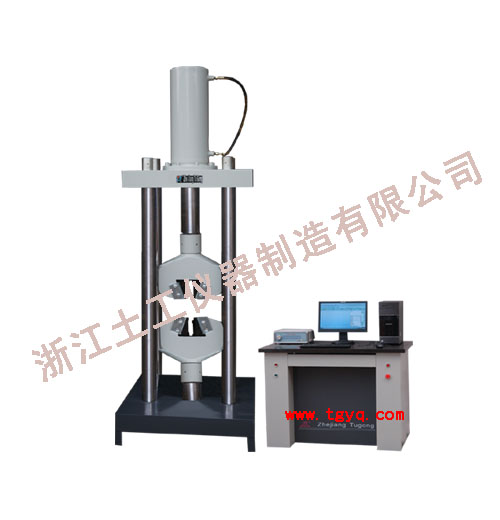

    The control unit is composed of computer and control system, it process stress, strain and displacement control modes, the test data can be stored at will, and the data and curves can be reanalyzed, part amplified and data re-edition, test conditions (specimen, measurement) are programmable, all the mechanical properties can be obtained automatically, and print whole test report and curve.
Standard:
    It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant.

1гЂЃMax. testing power:300kN   600kN   1000kN
2гЂЃTesting power Precision:grade 1
3гЂЃTesting power distance:2%-100% FS
4гЂЃDistortion testing precision:В±1%
5гЂЃMax. tension distance:610mm  510mm   590mm
6гЂЃClamp diameter of round specimen:О¦10-32mm    О¦13-40mm   О¦20-60mm
7гЂЃClamp thickness of flat specimen:0-15mm   0-40mm
8гЂЃOil pump power:1.5kW
