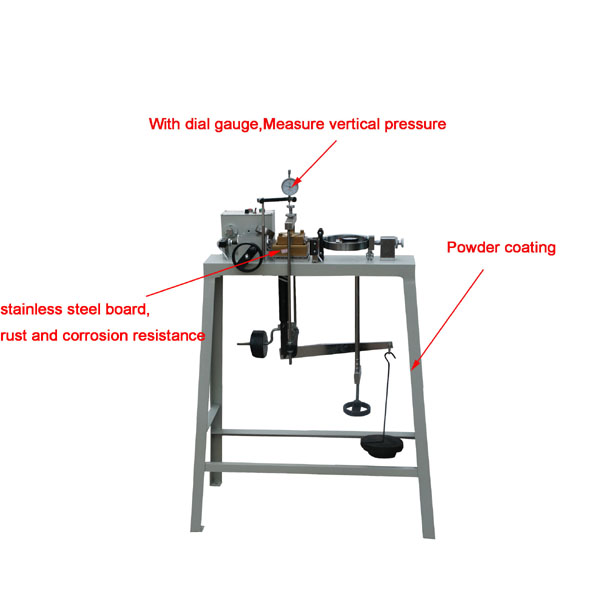

EDJ-1 Electric Strain Direct Shear Testing Apparatus (Double speed)
EDJ-2 Electric Strain Direct Shear Testing Apparatus (Three speed)

Application: This apparatus is used to test resisting shear strength of soil specimen.
Specification:
1. Area of the soil sample:30cmо €
2. Lever ratio: 1:12
3. Vertical loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 0.02, 0.8, 2.4mm/min
6. Handwheel speed: 0.1, 4, 12mm/min
7. AC220VACпјЏ60HZ
8. Packing measurement for EDJ-1: 880x600x1210mm, weight: 105kg
    Packing measurement for EDJ-2: 940x600x1170mm,weight: 110kg
