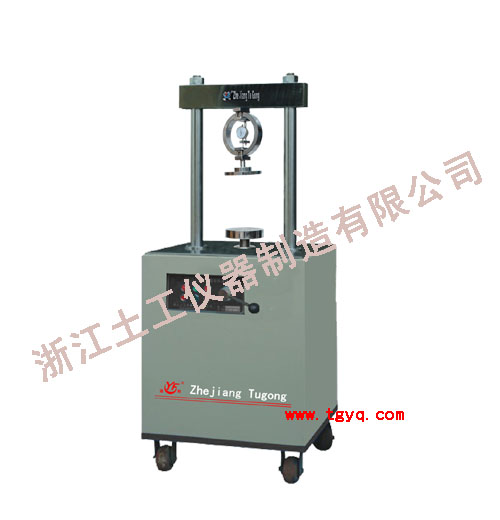

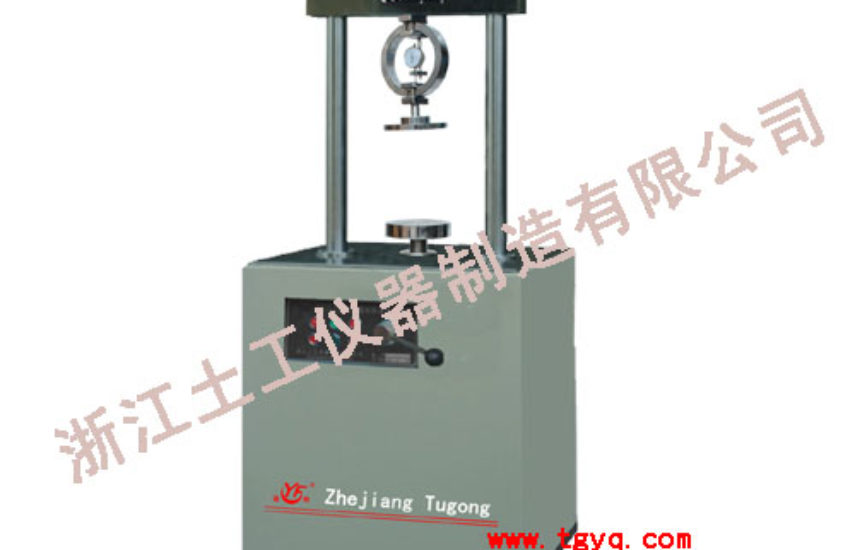

Application: the pavement material strength tester isapplied to perform unconfined strength
test, CBR test, Marshall test, rebound modulus test, cleavage strength test on pavement materials.
Specification:
1. Max. rated load: 100kN
2. Max. rise distance of the plate of the lead
screw: 200mm
3. Controllable velocity:  High-speed: 50mm/min
 Low-speed: 1mm/min
4. Rating of machine: JW7134  550W,AC220VВ±10%,
                                      AC380VВ±10%
1400RPM
Feature: Stainless steel working table
