Application: This apparatus is used to test resisting shear strength of soil specimen. It
usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.

Specification:
1. Area of soil sample:30cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(KPa)
4. Max. horizontal loading: 1.2kN
5. Shear rate:  0.01пЅћ25mm/min
6. 4 specimens in the same test
7. Working voltage: AC220VВ±10%
8. Measurement: 1160x900x1160mm(main frame),
500x500x1020mm(controller), weight: 240kg

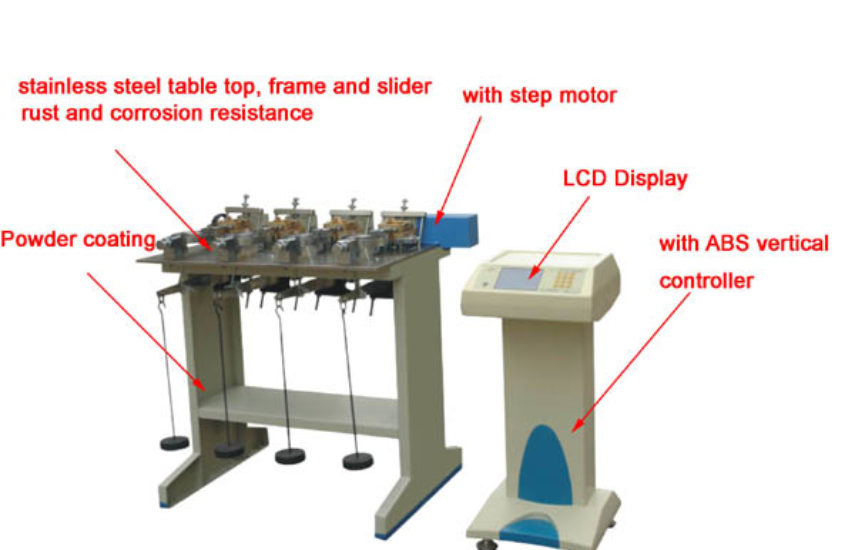

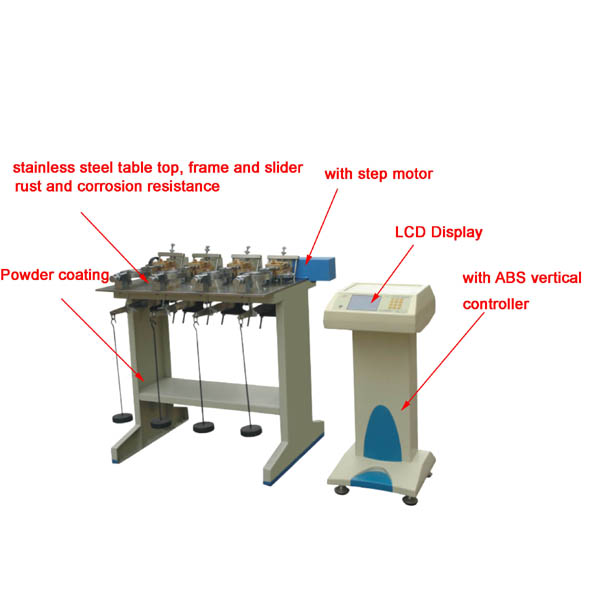

Features: Stainless steel working table, stepping
motor as pushing mechanism, high precision, low
noise, MCU control, variable speed displayed by
the controller, easy to operate, ABS vertical type
controller, LCD display.
