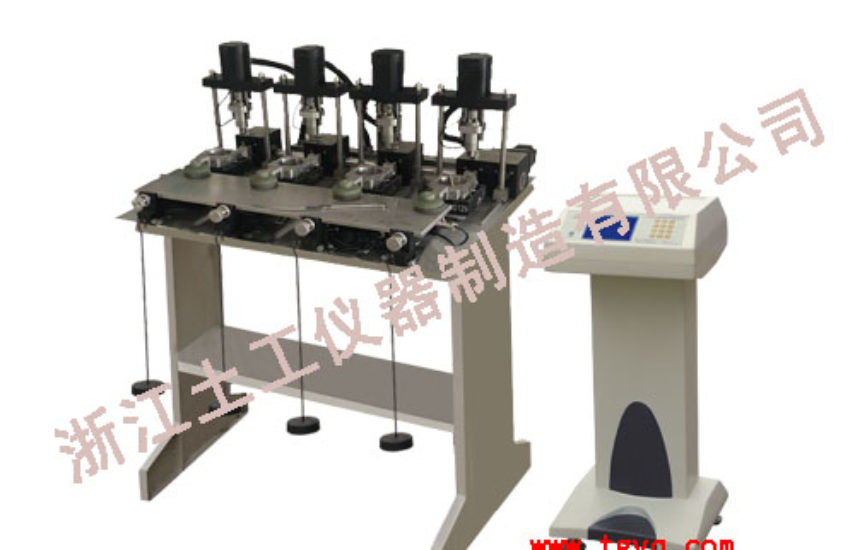

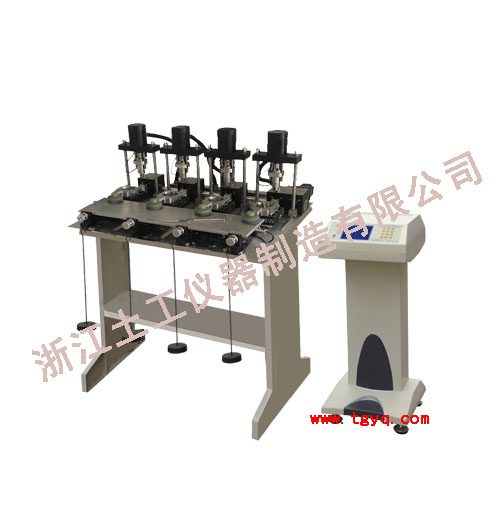

Application: This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.
Specification:
Area of soil sample:30cmо €
Lever ratio:1:12
Vertical Loading: 50,100,200,300,400(KPa)
Max. horizontal loading: 1.2kN
Shear rate:  0.01в…µ25mm/min
4 specimens in the same test
Working voltage: AC220VгЂђ10%
Connectable computer automatic control
