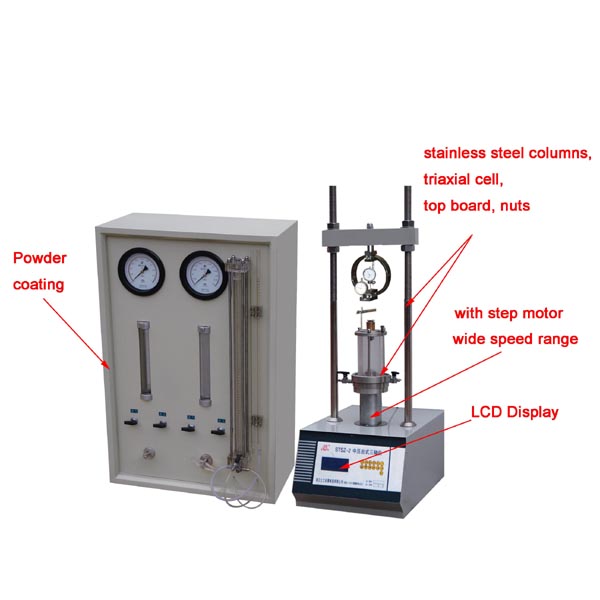

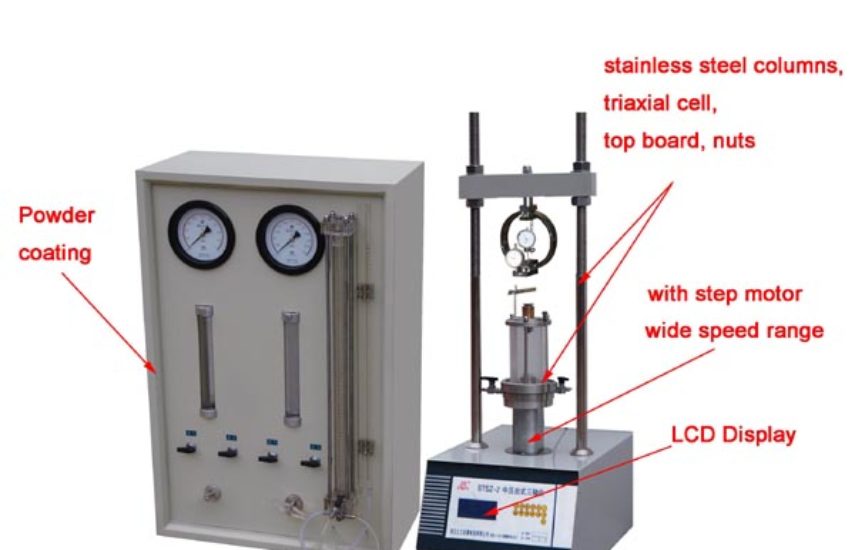

Application: to measure soil shearing strength, thus analysizing soil stability and providing data
for construction projects. Perform UU, CU and CD triaxial tests.
Technical parameters:
1. Specimen size: 39.1(Dia)Г—80mm
2. Max. axial load: 10KN
3. Lift speed range(mm/min): 0.003пЅћ4.800
4. Max. stroke: 35mm
5. Max. confining pressure: 1MPa
6. Max. back pressure: 0.6MPa
7. Pore water pressure:0-1MPa
8. Volume change range:0-50ml, min. division 0.1ml
9. Axial displacement range: 0-30mm
